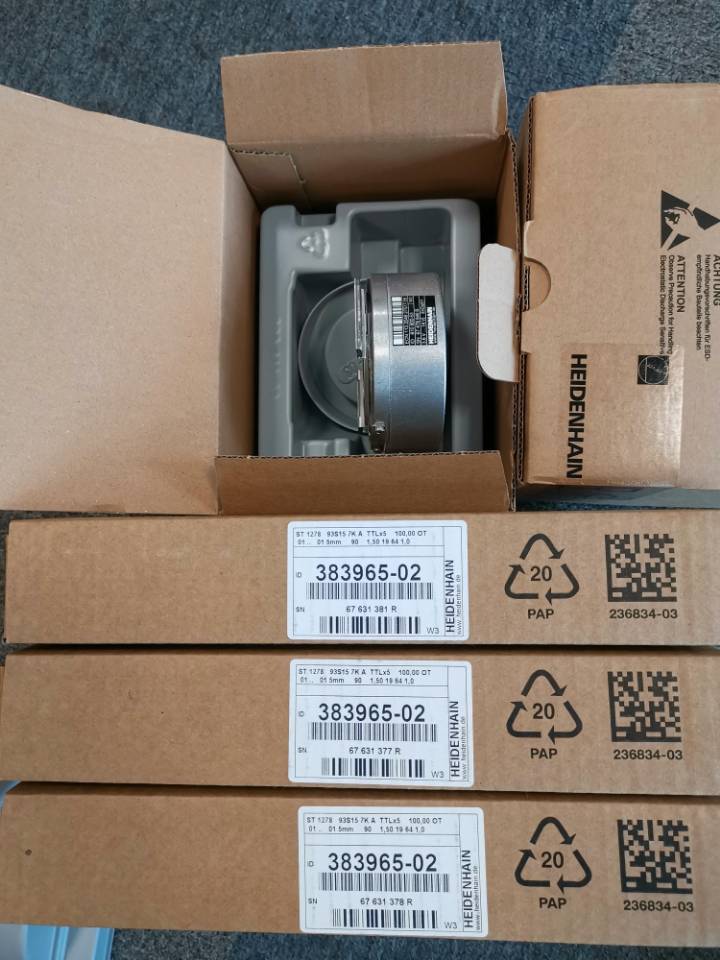

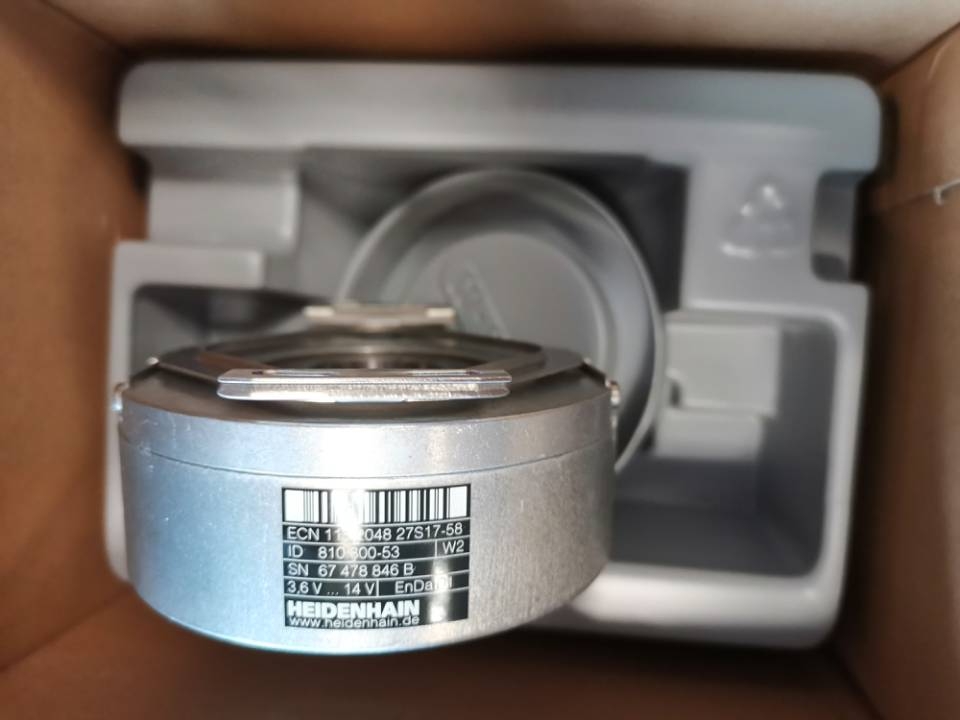

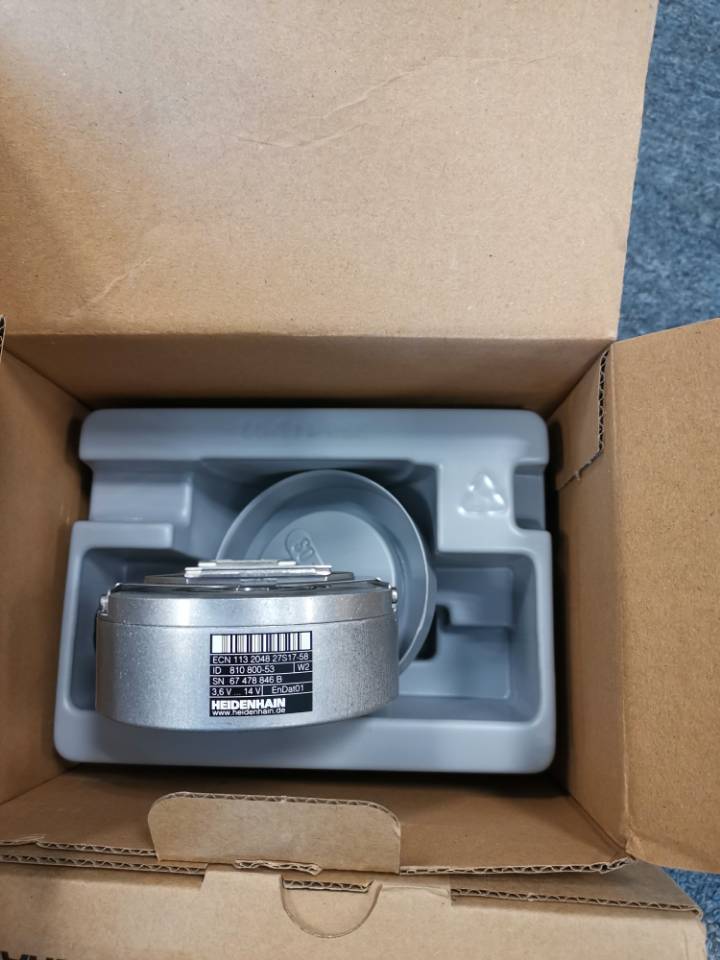

ECN 113 Singleturn rotary encoder with integral bearing Positions per revolution: 8192 Data interface: EnDat01 Output code: Binary Line count: 2048 Output signal: ~1Vpp Cutoff frequency (-3 dB): 400.00 kHz Power supply: 3.6 V ... 14 V Coupling version: Stator coupling for plane surface (hole circle Ø 96 mm) Shaft: Hollow through shaft with eccentric clamping, diameter 25 mm Degree of protection: IP64 (EN60529) Operating temperature: -40/+100 °C Electrical connection: Flange socket M23, male, 17-pin Pin configuration: D288678 Connecting direction: radial Please pay attention to the product documentation!
