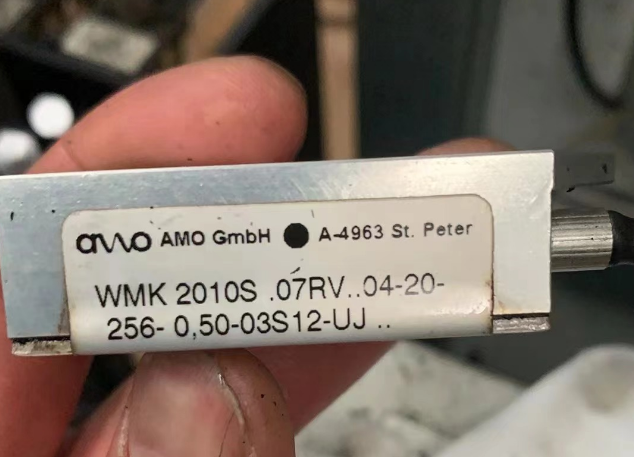

AMO 读数头 现货 WMK 2010S .07RV..04-20- 256- 0,50-03S12-UJ
AMO GmbH代理 原厂 全新 质保12个月
产品参数
WMK 2010 S Standard Scanning head for modular angle encoders Scanning arrangement: Outside scanning Measuring method: incremental Measuring principle: inductive Design of the scanning Standard, cable outlet head: right Line count: 256 Number of signal periods: 1024 Grating period: 1000 µm Interface: TTL Incremental signals / multiplication: Max. scanning frequency:100.00 kHz Power supply: 5 V (+-10 %) DC Electrical connection: Coupling M23, male, 12-pin Pin configuration: D1164659 Cable length: 0.50 m
